filter

Signal Processing Toolbox

Filter data with a recursive (IIR) or nonrecursive (FIR) filter.

y = filter(b,a,x)
[y,zf] = filter(b,a,x)
[...] = filter(b,a,x,zi)
[...] = filter(b,a,x,zi,dim)

Description

filter is part of the MATLAB environment. It filters data using a digital filter. The filter realization is the transposed direct form II structure [1], which can handle both FIR and IIR filters.

If a(1)

1, filter normalizes the filter coefficients by a(1). If a(1) = 0, the input is in error.

y = filter(b,a,x)

filters the data in vector x with the filter described by coefficient vectors a and b to create the filtered data vector y. When x is a matrix, filter operates on the columns of x. When x is an N-dimensional array, filter operates on the first non-singleton dimension.

[y,zf] = filter(b,a,x)

returns the final values of the states in the vector zf.

[...] = filter(b,a,x,zi)

specifies initial state conditions in the vector zi.

The size of the initial/final condition vector is max(length(b),length(a))-1. zi or zf can also be an array of such vectors, one for each column of x if x is a matrix. If x is a multidimensional array, filter works across the first nonsingleton dimension of x by default.

[...] = filter(b,a,x,zi,dim)

works across the dimension dim of x. Set zi to empty to get the default initial conditions.

filter works for both real and complex inputs.

Example

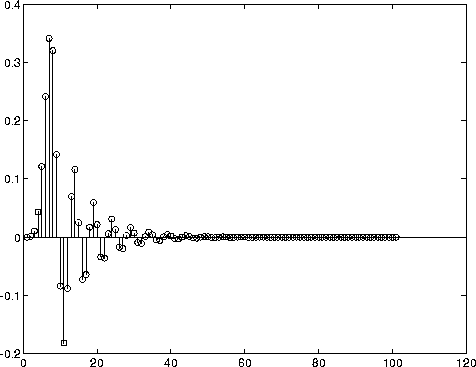

Find and graph the 100-point unit impulse response of a digital filter:

x = [1 zeros(1,100)];
[b,a] = butter(12,400/1000);
y = filter(b,a,x);
stem(y)

Algorithm

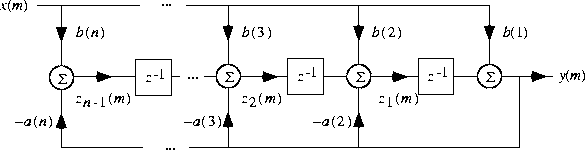

filter is a built-in MATLAB function. filter is implemented as a transposed direct form II structure

where n-1 is the filter order.

The operation of filter at sample m is given by the time domain difference equations for y and the states z_i :

You can use filtic to generate the state vector z_i(0) from past inputs and outputs.

The input-output description of this filtering operation in the z-transform domain is a rational transfer function:

Diagnostics

If a(1) = 0, filter gives the following error message:

First denominator coefficient must be nonzero.

If the length of the initial condition vector is not the greater of na and nb, filter gives the following error message:

Initial condition vector has incorrect dimensions.

`fftfilt`	FFT-based FIR filtering using the overlap-add method.
`filter2`	Two-dimensional digital filtering.
`filtfilt`	Zero-phase digital filtering.
`filtic`	Make initial conditions for `filter` function.
